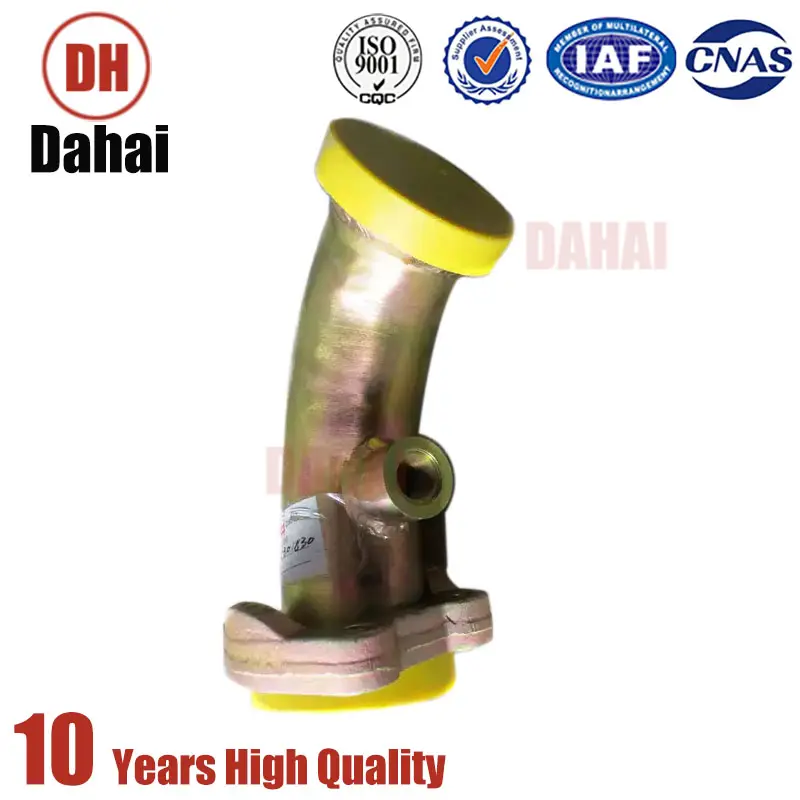

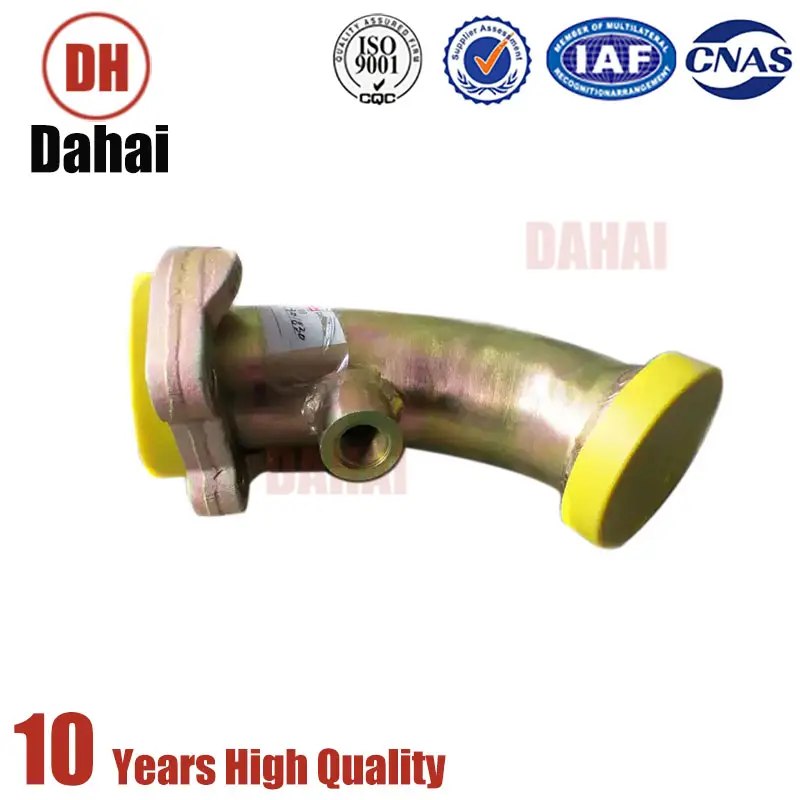

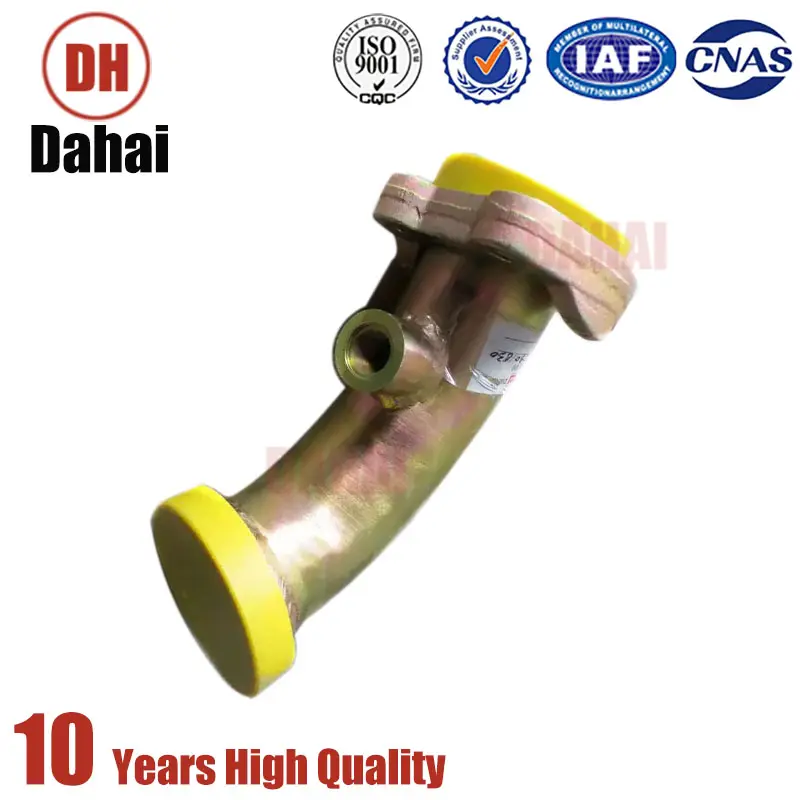

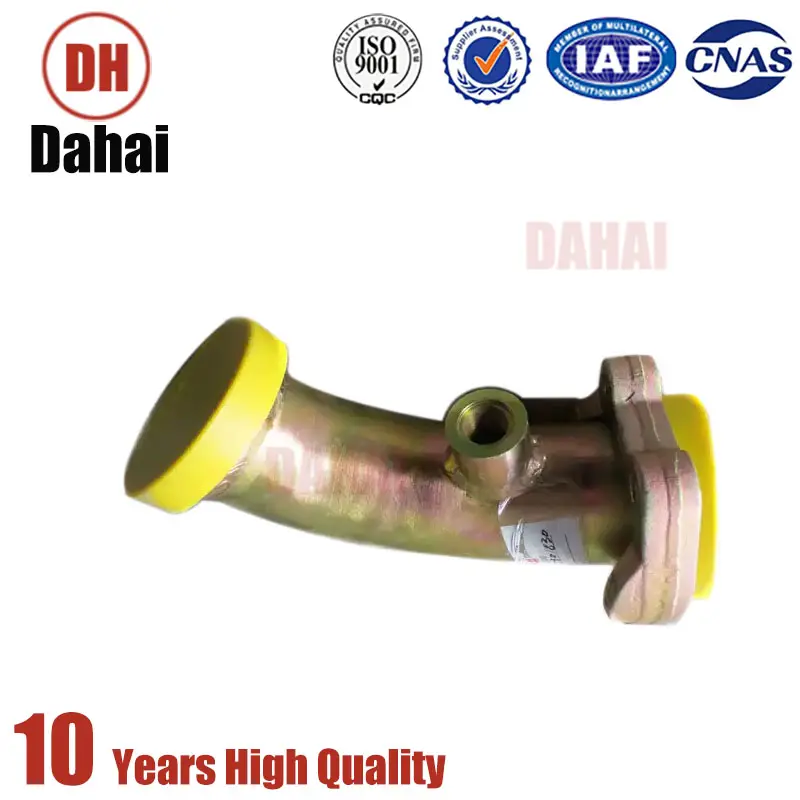

Oil Cooler Piping 15301830 Tube Assembly for Terex Dump Truck TR100

Part No.: 15301830

Product Name: Tube Assy
Application: Cooling system parts
Place of Origin: Guangdong, China
Brand Name: DAHAI
Warranty: 1 Years
Size: Standard
MOQ: 1pcs
Quality: 100% Tested
Certification: ISO9001 IAF CNAS
Payment: Union Paypal TT
Shipping Term: DHL UPS FEDEX TNT EMS
Packing: Neutral Packing or According to Customer Requirements

Delivery time: 7 Days

001 001 15236513 TUBE ASSY

002 001 15236512 TUBE ASSY

003 001 15301837 HOSE ASSEMBLY 2.50" MP

004 001 15246697 HOSE ASSY

005 010 09167602 FLANGE-SPLIT

006 002 15002672 O RING

007 020 00186725 BOLT

008 020 00103329 LOCKWASHER

009 001 00444625 PLUG (0.38IN)

010 001 15301830 TUBE ASSEMBLY

011 001 15015614 ELBOW

012 001 15015613 ELBOW

013 001 15016179 TUBE

014 001 15004329 FLANGE

015 001 15016292 ELBOW

016 004 15247679 HOSE SILICONE 4" I/D

017 008 15323235 CLAMP

018 001 15231820 BRACKET ASSEMBLY

019 001 00179890 BOLT

020 004 00179881 BOLT

021 002 09068858 GASKET

022 002 15247680 HOSE SILICONE 5" I/D

023 004 15323233 CLAMP

024 004 00179887 BOLT

025 004 00120378 NUT

026 008 09250715 WASHER-HARDENED

027 008 00271613 BOLT

028 002 05140808 GASKET

029 034 00108580 LOCKWASHER

030 032 00179839 BOLT

031 001 05140804 HOUSING-COOLER

032 010 05141039 GASKET

033 001 05141223 GASKET

034 001 15016268 COVER

035 005 08535369 CORE

036 010 00218443 LOCKNUT

037 020 15020422 SEAL

038 001 15244477 TUBE-WATER

039 001 15246578 HOSE

040 004 15311495 CLAMP-SPRING

038 002 15015249 BUSHING-SPLIT
039 010 15004748 NUT-STACKING
040 006 15001428 NUT-STACKING
041 008 00179883 BOLT
042 002 00179890 BOLT
043 012 00179841 BOLT
044 006 00179841 BOLT
045 032 09167602 FLANGE-SPLIT
046 032 09409985 FLANGE-SPLIT
047 008 09409984 FLANGE-SPLIT
048 016 15002672 O RING
049 017 15008262 O RING
050 004 15008261 O RING
051 104 00179885 BOLT
052 062 00179887 BOLT
053 165 00103329 LOCKWASHER
054 001 15008260 O RING
055 002 00102635 NUT
056 004 00103328 LOCKWASHER
057 009 00179893 BOLT
058 004 00187433 BOLT
059 008 00106265 WASHER
060 006 00108580 LOCKWASHER
061 002 09077325 CLIP-P
062 001 00179881 BOLT
063 001 15258078 BRACKET
064 001 15258079 HOSE ASSY
065 002 15001430 CLAMP
066 002 15312072 TUBE ASSY
067 001 15015614 ELBOW
068 001 15015613 ELBOW
069 001 00179890 BOLT
070 004 00179881 BOLT
071 002 09068858 GASKET
072 002 15247680 HOSE-SILICONE 5"
073 004 15246693 CLAMP
074 004 00179887 BOLT
075 004 00120378 NUT
076 001 15311853 TUBE
077 ASR 15246578 HOSE
