180 SUSPENSION SYSTEM

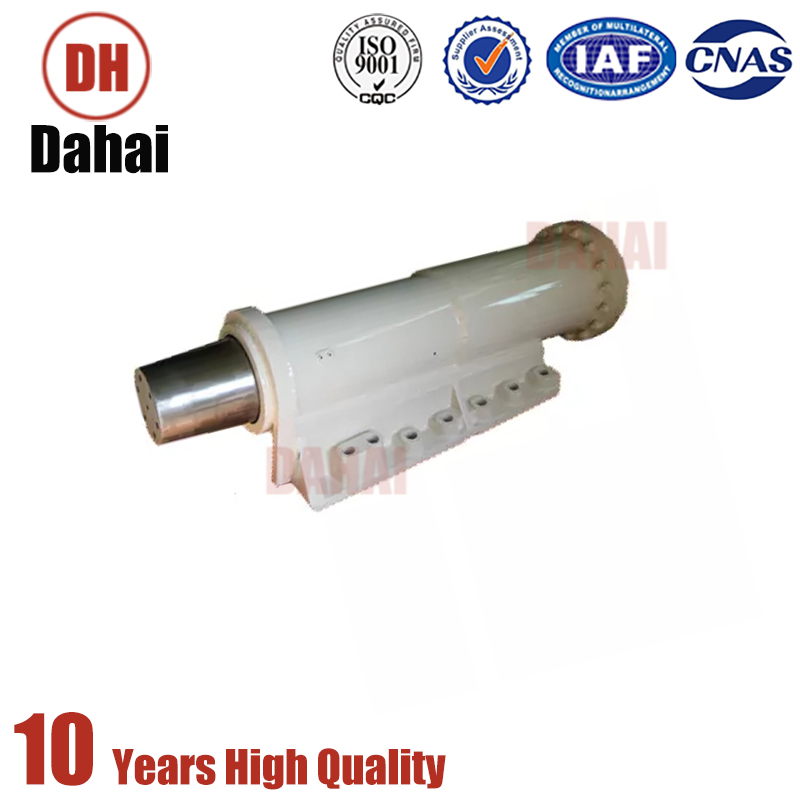

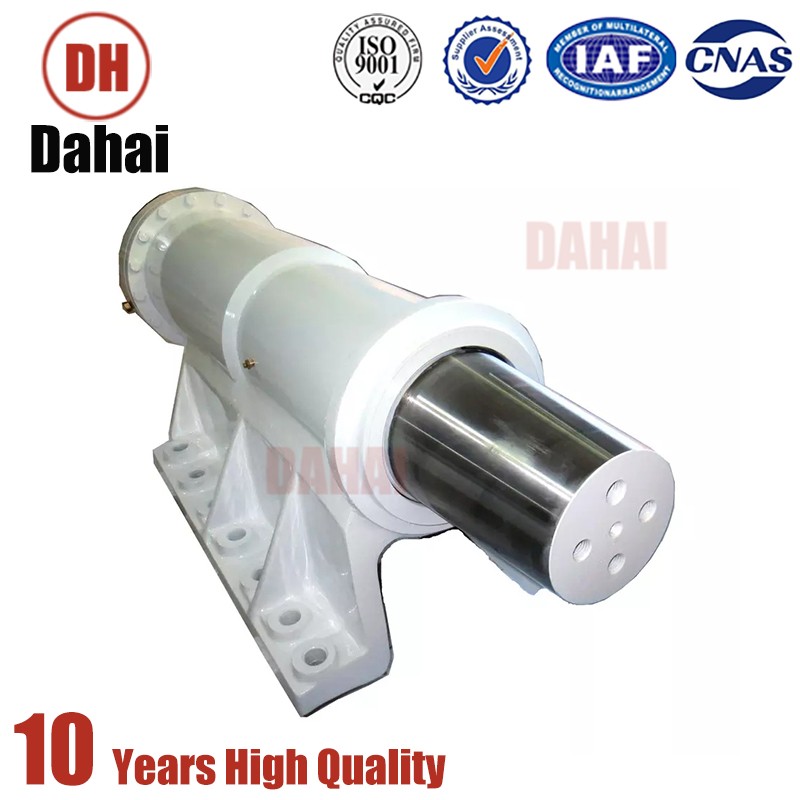

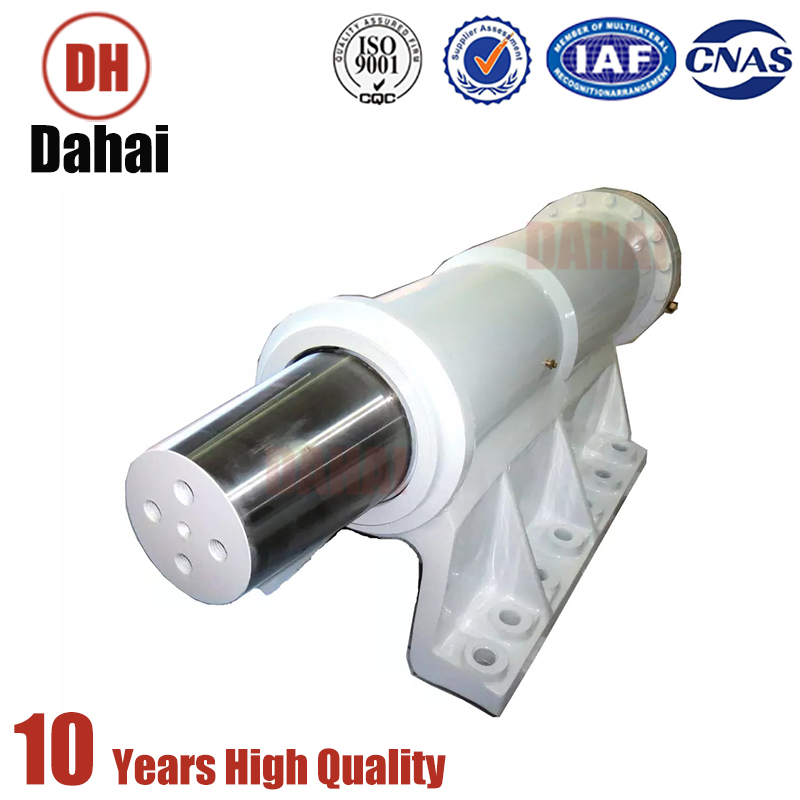

Dahai Front Ride Cyl Assem 15250974 for Terex TR100

Place of Origin: China
Brand From: Japan
Brand Name: Dahai
Part No.: 15250974
Product Name:  Front Ride Cyl Assem
Marketing Type: Ordinary Product
Quality: 100% Japan JIS Tested
Application: Terex Dump Truck, TR100, 3311E, 3307
Payment iterm: Bank transfer, Western Union, Money Gram, Credit Card,Paypal

  • Product Detail
  • Related products
  • Suspension system

DAHAI TEREX terex truck part PTO ASSY 15257485 for dump truck TR100


Part No.: 15250974
Product Name:  Cylinder Assy-Front
Application: Suspension system parts
Place of Origin: Guangdong, China
Brand Name: DAHAI
Warranty: 1 Years
Size: Standard
MOQ: 1pcs
Quality: 100% Tested
Certification: ISO9001 IAF CNAS
Payment: Union Paypal TT
Shipping Term: DHL UPS FEDEX TNT EMS
Packing: Neutral Packing or According to Customer Requirements
Delivery time: 7 Days

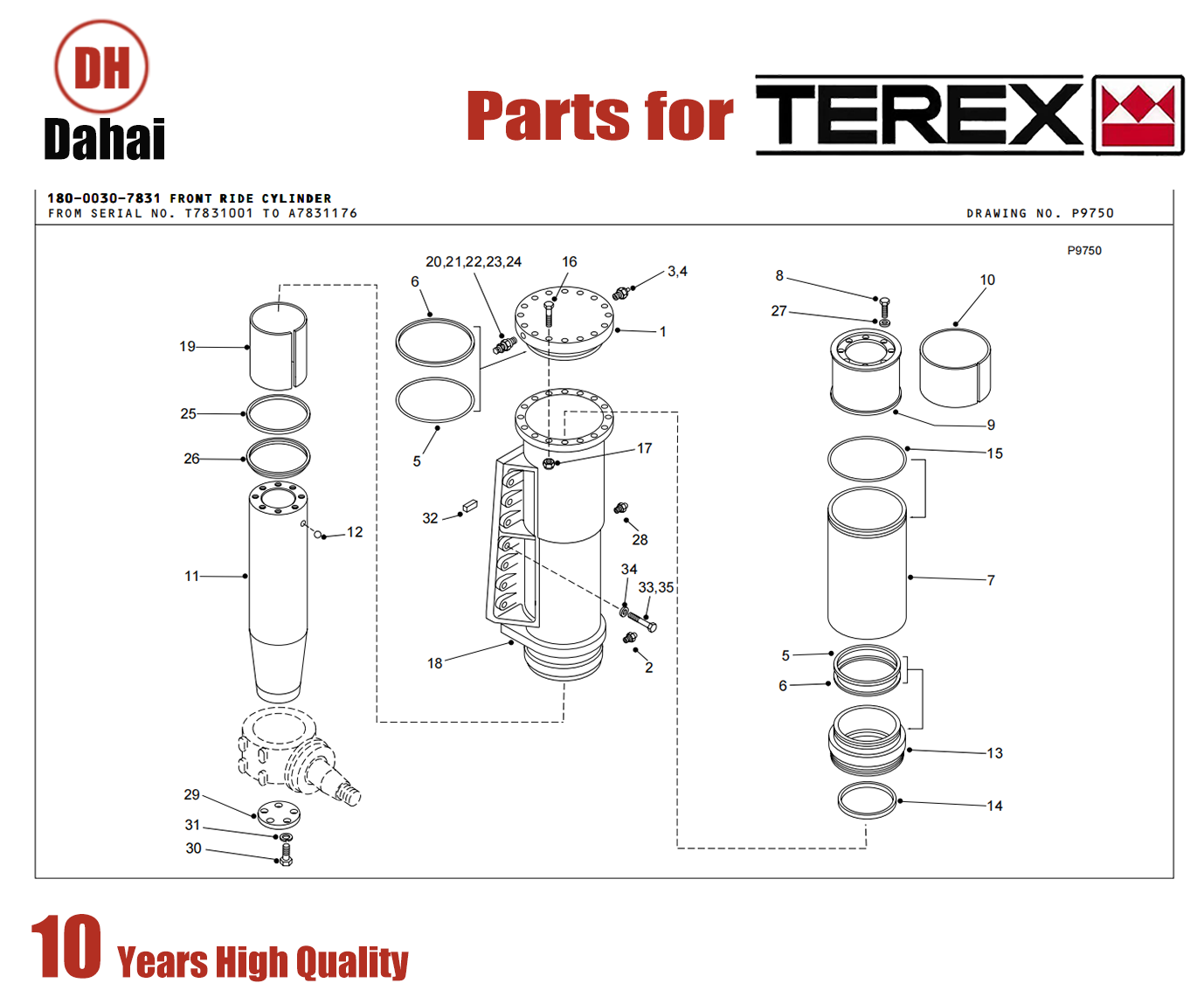

000 001 15250974 FRONT RIDE CYL ASSEM

001 002 09384099 .CAP-END
002 002 09411010 .FITTING-GREASE
003 002 09013688 .VALVE-CHECK
004 002 00444613 .PLUG
005 004 15016161 .O RING
006 004 09069472 .RING-BACKUP
007 002 09069476 .TUBE
008 040 09269710 .BOLT
009 002 09069475 .PISTON
010 002 09069468 .RING-PISTON
011 002 15250973 .ROD-PISTON
012 002 00169162 .BALL
013 002 09383859 .RETAINER SEAL
014 002 15233291 .SEAL
015 002 09222091 .O RING
016 032 00223457 .BOLT
017 032 09355771 .NUT
018 002 09383858 .TUBE ASSY
019 002 15250986 .RING-WEAR
000 001 15250974 FRONT RIDE CYL ASSEM
001 002 09384099 .CAP-END
002 002 09411010 .FITTING-GREASE
003 002 09013688 .VALVE-CHECK
004 002 00444613 .PLUG
005 004 15016161 .O RING
006 004 09069472 .RING-BACKUP
007 002 09069476 .TUBE
008 040 09269710 .BOLT
009 002 09069475 .PISTON
010 002 09069468 .RING-PISTON
011 002 15250973 .ROD-PISTON
012 002 00169162 .BALL
013 002 09383859 .RETAINER SEAL
014 002 15233291 .SEAL
015 002 09222091 .O RING
016 032 00223457 .BOLT
017 032 09355771 .NUT
018 002 09383858 .TUBE ASSY
019 002 15250986 .RING-WEAR
020 002 06525035 .VALVE ASSY-RECHARGE
021 001 09030336 ..RING-LARGE
022 001 09190141 ..RING-SMALL
023 001 09034883 ..CORE
024 001 09035137 ..CAP
025 002 09069467 .SEAL
026 002 09069466 .WIPER
027 040 09068666 .WASHER-HARDENED
028 002 00106671 .FITTING-RELIEF
029 001 09069958 COVER
030 006 00271617 BOLT
031 006 09250715 WASHER-HARDENED
032 002 09019478 .KEY-SHEAR
033 010 09423349 BOLT HEX 1.25-7 UNC
034 014 09259718 WASHER-HARDENED
035 004 15244531 BOLT
020 002 06525035 .VALVE ASSY-RECHARGE
021 001 09030336 ..RING-LARGE
022 001 09190141 ..RING-SMALL
023 001 09034883 ..CORE
024 001 09035137 ..CAP
025 002 09069467 .SEAL
026 002 09069466 .WIPER
027 040 09068666 .WASHER-HARDENED
028 002 00106671 .FITTING-RELIEF
029 001 09069958 COVER
030 006 00271617 BOLT
031 006 09250715 WASHER-HARDENED
032 002 09019478 .KEY-SHEAR
033 010 09423349 BOLT HEX 1.25-7 UNC
034 014 09259718 WASHER-HARDENED
035 004 15244531 BOLT



000 001 15250974 CYLINDER ASSY-FRONT

001 001 09384099 .CAP-END
002 001 09411010 .FITTING-GREASE
003 001 09013688 .VALVE-CHECK
004 001 00444613 .PLUG
005 002 15016161 .O RING
006 002 09069472 .RING-BACKUP
007 001 09069476 .TUBE
008 020 09269710 .BOLT
009 001 09069475 .PISTON
010 001 09069468 .RING-PISTON
011 001 15250973 .ROD-PISTON
012 001 00169162 .BALL
013 001 15315332 .SEAL RETAINER
014 001 15233291 .SEAL
015 001 09222091 .O RING
016 016 00223457 .BOLT
017 016 09355771 .NUT
018 001 09383858 .TUBE ASSY
019 001 15250986 .RING-WEAR
020 001 06525035 .VALVE ASSY-RECHARGE
021 001 09030336 ..RING-LARGE
022 001 09190141 ..RING-SMALL
023 001 09034883 ..CORE
024 001 NSS ..CAP
025 001 09069467 .SEAL
026 001 09069466 .WIPER
027 020 09068666 .WASHER-HARDENED
028 001 00106671 .FITTING-RELIEF
029 001 15315331 .ANTI-EXTRUSION RING
030 001 15315333 .WEAR RING
031 006 09250715 WASHER-HARDENED
032 002 09019478 KEY-SHEAR
033 010 09423349 BOLT
034 014 09259718 WASHER-HARDENED
035 004 15244531 BOLT
036 001 09069958 COVER
037 006 00271617 BOLT
