Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :9437224 9437225
Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38

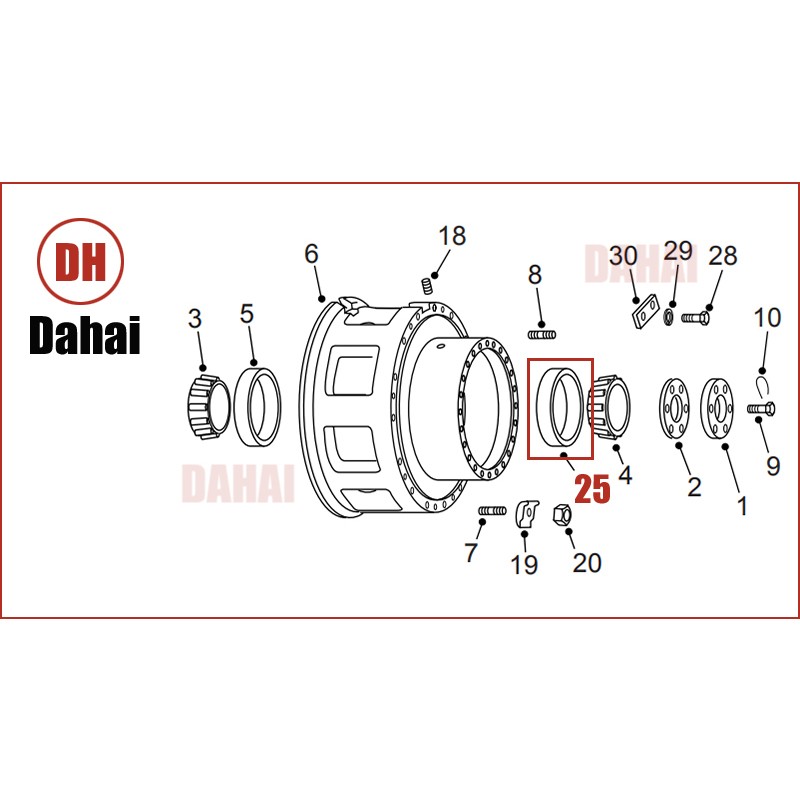

000 004 15258732 TYRE,27.00R49,RL4J**
001 002 15021101 PLATE
002 ASR 09063017 SHIM-PACK
003 002 15233384 CONE-BEARING
004 002 09437224 CONE-BEARING
005 002 15233385 CUP-BEARING
006 002 15233302 WHEEL
007 054 09253468 STUD
008 024 09255689 STUD
009 008 09063025 BOLT
010 ASR 09113457 LOCKWIRE
011 004 09209490 O RING
A 012 002 15017037 BASE
A 013 004 09063834 FLANGE
A 014 002 09074982 BAND-BEAD SEAT
A 015 002 09074983 LOCKRING
016 002 15017033 BAND SPACER
017 001 15017034 WEDGE-BAND
018 001 00273469 PLUG
019 027 15023746 CLAMP
020 054 09433576 NUT
021 001 09211054 VALVE ASSY
022 001 09116292 .CAP
023 001 09142286 .CORE
024 002 15245476 EXTENSION-VALVE
025 002 09437225 CUP-BEARING
026 001 09262747 WASHER
028 001 00179880 BOLT
029 002 00103329 LOCKWASHER
030 002 15244195 PLATE
031 001 09074815 SPUD
032 004 09051190 .GROMMET
033 001 15017039 VALVE ASSY-INST
034 002 09116292 .CAP
035 002 09142286 .CORE
NOTES:
A RIM PARTS FROM DIFFERENT MANUFACTURERS MUST NOT BE
INTERMIXED

000 004 15258732 TYRE,27.00R49,RL4J**
001 002 15021101 PLATE
002 ASR 09063017 SHIM-PACK
003 002 15233384 CONE-BEARING
004 002 09437224 CONE-BEARING
005 002 15233385 CUP-BEARING
006 002 15233302 WHEEL
007 054 09253468 STUD
008 024 09255689 STUD
009 008 09063025 BOLT
010 ASR 09113457 LOCKWIRE
011 004 09209490 O RING
A 012 002 15017037 BASE
A 013 004 09063834 FLANGE
A 014 002 09074982 BAND-BEAD SEAT
A 015 002 09074983 LOCKRING
016 002 15017033 BAND SPACER
017 001 15017034 WEDGE-BAND
018 001 00273469 PLUG
019 027 15023746 CLAMP
020 054 09433576 NUT
021 001 09211054 VALVE ASSY
022 001 09116292 .CAP
023 001 09142286 .CORE
024 002 15245476 EXTENSION-VALVE
025 002 09437225 CUP-BEARING
026 001 09262747 WASHER
028 001 00179880 BOLT
029 002 00103329 LOCKWASHER
030 002 15244195 PLATE
031 001 09074815 SPUD
032 004 09051190 .GROMMET
033 001 15017039 VALVE ASSY-INST
034 002 09116292 .CAP
035 002 09142286 .CORE
NOTES:
A RIM PARTS FROM DIFFERENT MANUFACTURERS MUST NOT BE
INTERMIXED
