Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard

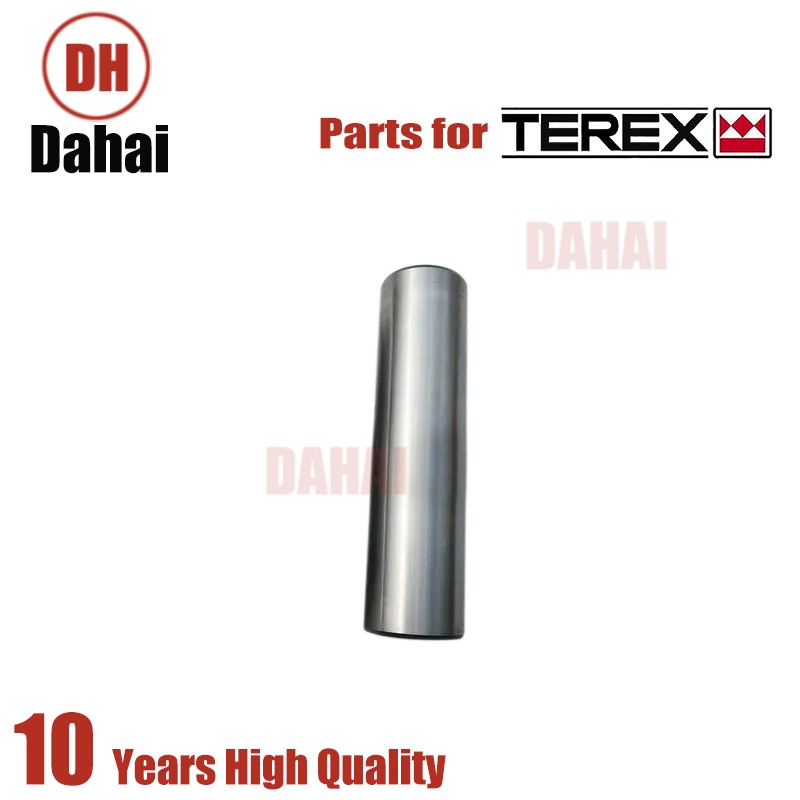

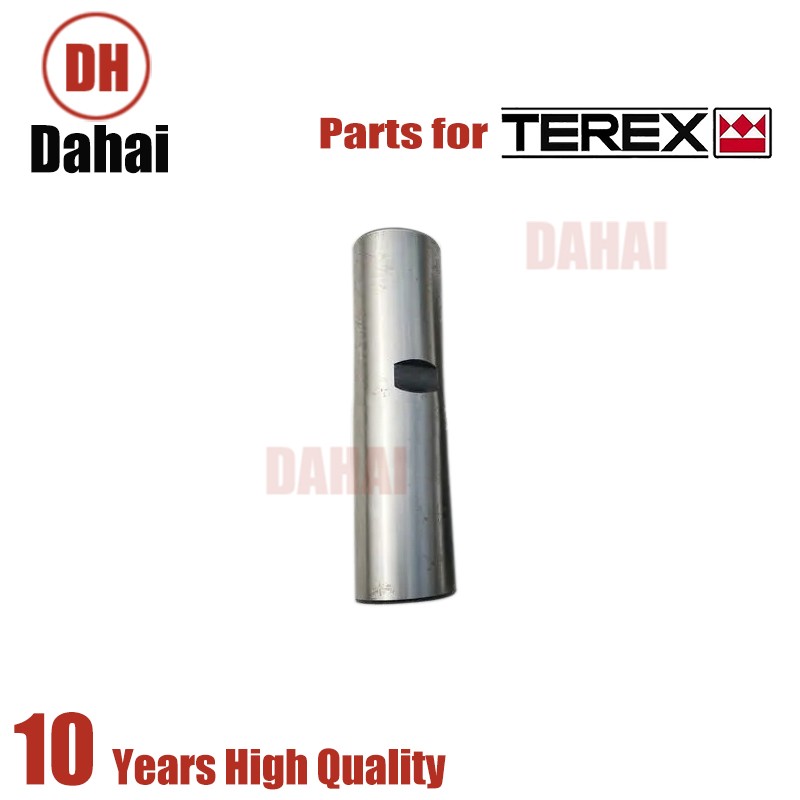

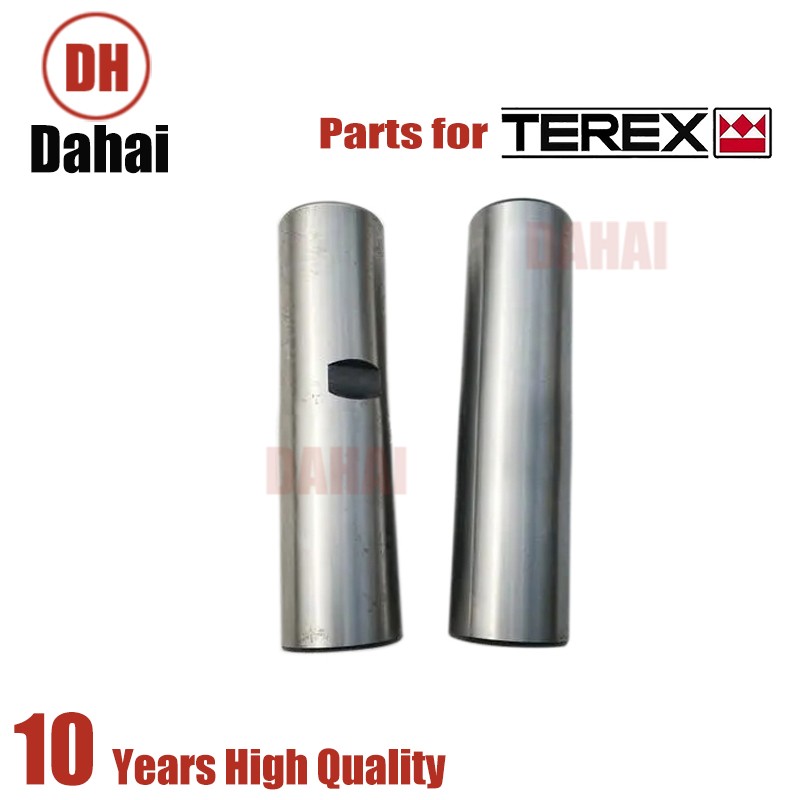

OEM Part Number :9384855

Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38

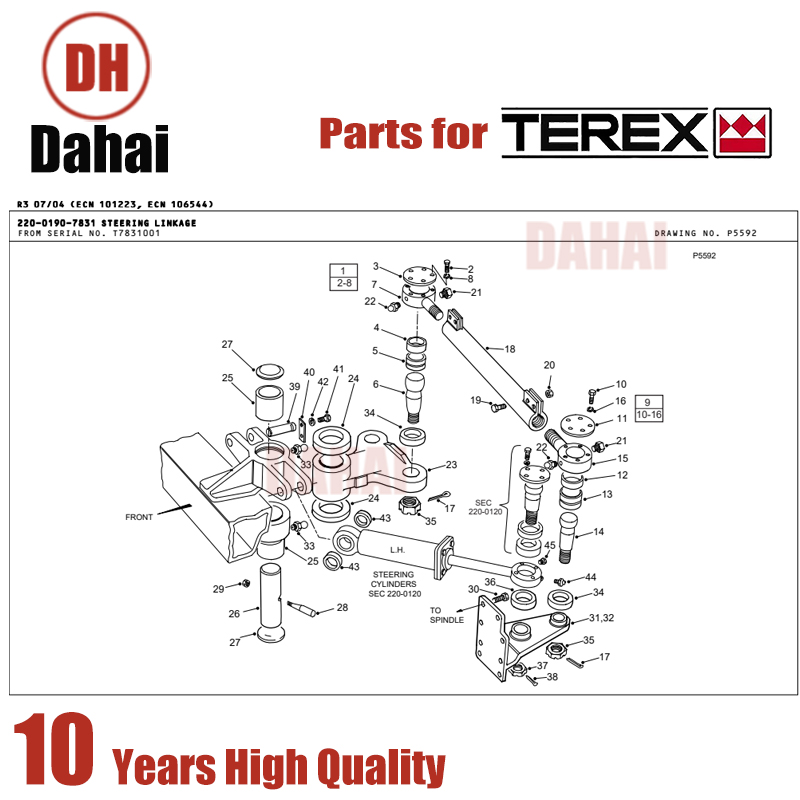

001 002 15229005 ROD END ASSY
 002 010 00179839 .BOLT
 003 004 09018309 .PLATE
 004 002 09018310 .RING-RETAINER
 005 002 09253566 .BUSHING
 006 002 15015767 .PIN-BALL
 007 002 15228998 .ROD-END
 008 010 00108580 .LOCKWASHER
 009 002 15229006 ROD END ASSY
 010 010 00179839 .BOLT
 011 002 09018309 .PLATE
 012 002 09018310 .RING-RETAINER
 013 002 09253566 .BUSHING
 014 002 15015767 .PIN-BALL
 015 002 15228999 .ROD-END
 016 010 00108580 .LOCKWASHER
 017 004 00103426 PIN-COTTER
 018 002 09014408 ROD-TIE
 019 008 00271563 BOLT
 020 008 09354243 LOCKNUT
 021 004 00444613 PLUG
 022 004 09411019 NIPPLE-GREASE
 023 001 15021796 BELLCRANK
 024 002 09014414 WASHER-THRUST
 025 002 15230265 BUSHING
 026 001 09384855 PIN
 027 002 15229654 DISC
 028 001 09072942 PIN-LOCKING
 029 001 09355772 NUT
 030 016 00223489 BOLT
 031 001 15254413 STEER ARM-LH
 032 001 15254412 STEER ARM-RH
 033 002 09411010 FITTING-GREASE
 034 004 15317485 SEAL
 035 004 00427667 NUT
 036 002 15317486 SEAL
 037 002 09016970 NUT
 038 002 00179097 PIN-COTTER
 039 002 15250059 PIN
 040 002 09060302 PLATE

001 002 15229005 ROD END ASSY
 002 010 00179839 .BOLT
 003 004 09018309 .PLATE
 004 002 09018310 .RING-RETAINER
 005 002 09253566 .BUSHING
 006 002 15015767 .PIN-BALL
 007 002 15228998 .ROD-END
 008 010 00108580 .LOCKWASHER
 009 002 15229006 ROD END ASSY
 010 010 00179839 .BOLT
 011 002 09018309 .PLATE
 012 002 09018310 .RING-RETAINER
 013 002 09253566 .BUSHING
 014 002 15015767 .PIN-BALL
 015 002 15228999 .ROD-END
 016 010 00108580 .LOCKWASHER
 017 004 00103426 PIN-COTTER
 018 002 09014408 ROD-TIE
 019 008 00271563 BOLT
 020 008 09354243 LOCKNUT
 021 004 00444613 PLUG
 022 004 09411019 NIPPLE-GREASE
 023 001 15021796 BELLCRANK
 024 002 09014414 WASHER-THRUST
 025 002 15230265 BUSHING
 026 001 09384855 PIN
 027 002 15229654 DISC
 028 001 09072942 PIN-LOCKING
 029 001 09355772 NUT
 030 016 00223489 BOLT
 031 001 15254413 STEER ARM-LH
 032 001 15254412 STEER ARM-RH
 033 002 09411010 FITTING-GREASE
 034 004 15317485 SEAL
 035 004 00427667 NUT
 036 002 15317486 SEAL
 037 002 09016970 NUT
 038 002 00179097 PIN-COTTER
 039 002 15250059 PIN
 040 002 09060302 PLATE
