Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :9038953

Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307
Engine:Commins K38

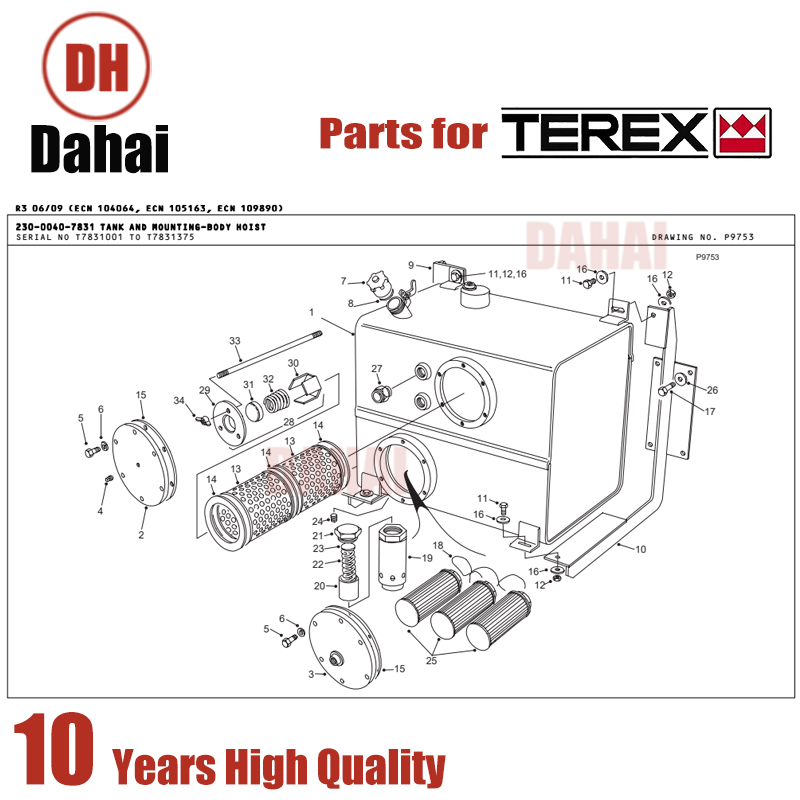

001 001 15233657 TANK ASSEMBLY
002 001 09202070 .COVER
003 001 15301265 .COVER ASSY
004 001 00444619 .PLUG
005 012 00186609 .BOLT
006 012 00108580 .LOCKWASHER
007 001 15353024 .CAP ASSY
008 001 09247259 ..GASKET
009 001 15255392 BRACKET
010 001 15233945 BRACKET
011 004 00186646 BOLT
012 004 09419465 LOCKNUT

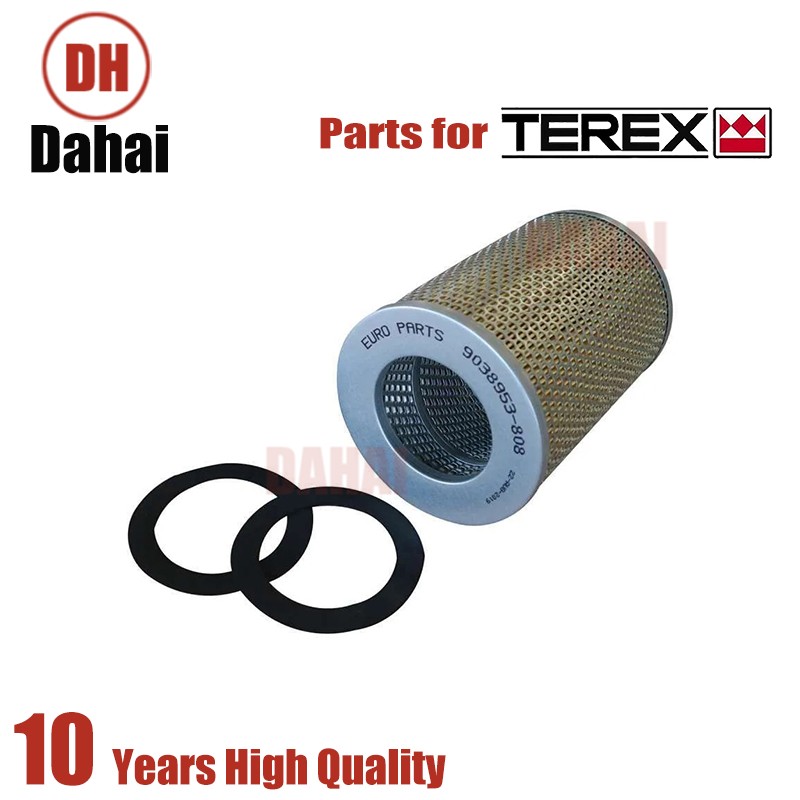

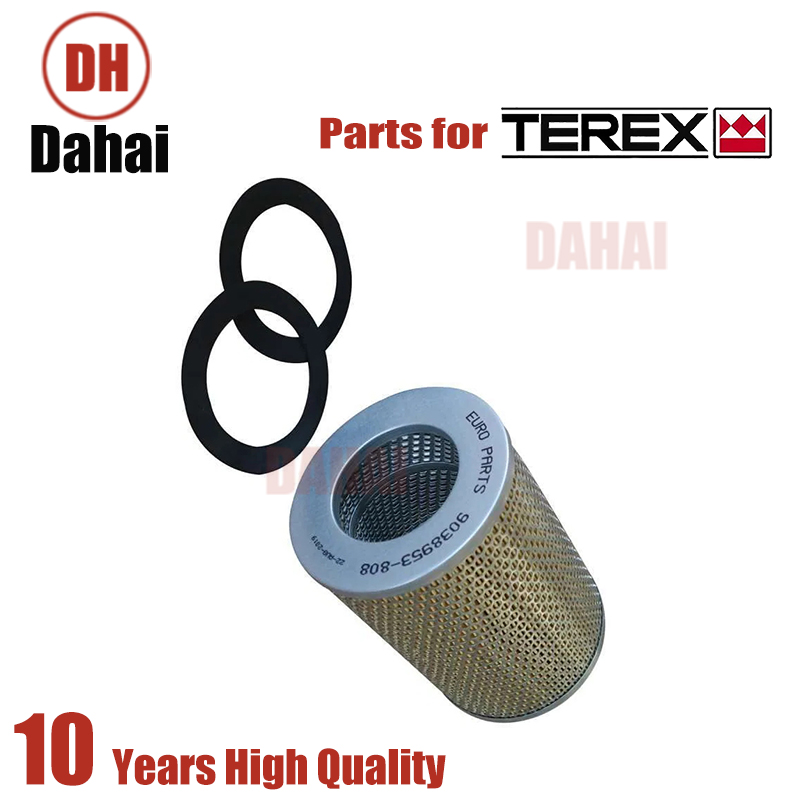

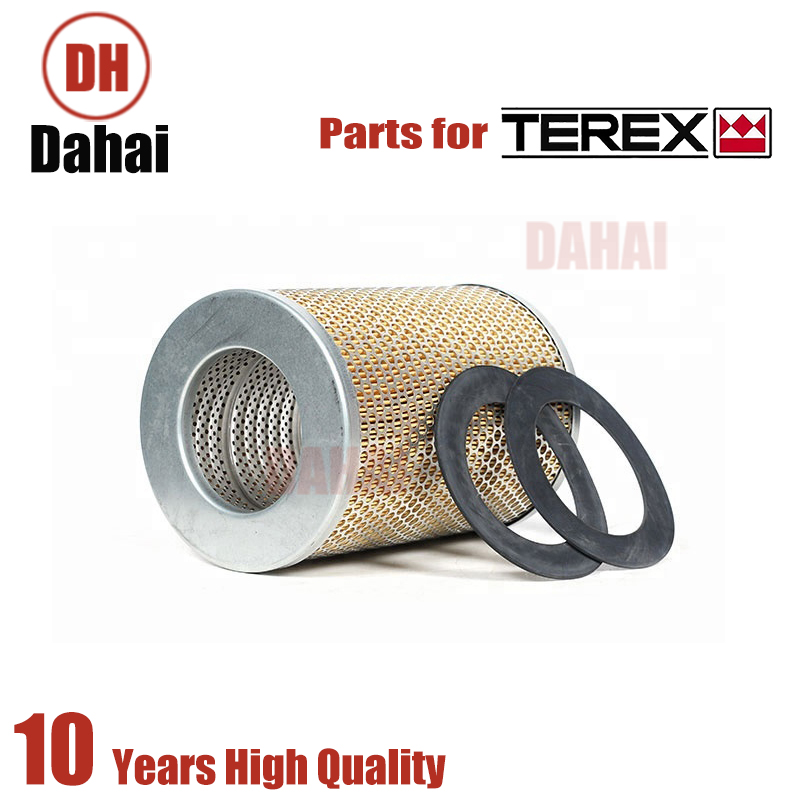

013 002 09038953 KIT-ELEMENT
014 003 09188288 .GASKET
015 002 09202069 .GASKET
016 008 09267949 WASHER-HARDENED
017 004 00223438 BOLT
018 ASR 09113457 LOCKWIRE
019 001 15232378 VALVE ASSEMBLY
020 001 15004129 .POPPET
021 001 15004130 .CAP
022 001 15004131 .SPRING
023 002 15004132 .SHIM
024 001 09183207 PLUG
025 003 09068999 SCREEN ASSEMBLY
026 004 09191596 WASHER
027 002 15230178 NUT-WINDOW
028 001 09368472 VALVE ASSY-RELIEF
029 001 09368473 .FLANGE
030 001 09368474 .RETAINER
031 001 09194725 .PLUNGER
032 001 09194726 .SPRING
033 003 09003522 ROD BOLT
034 003 02389616 NUT-WING

001 001 15333120 HYDRAULIC TANK ASSY
 002 001 15333119 .HYD TANK-WELDED
 003 002 15304688 .SIGHT GLASS
 004 002 15353024 .CAP ASSY
 005 002 09247259 ..GASKET
 006 004 15255315 .COVER
 007 004 00444619 .PLUG
 008 024 00108580 .LOCKWASHER
 009 024 00179839 .BOLT
A 010 004 09202069 .GASKET
 011 001 15230178 .NUT-WINDOW
 012 001 15333160 BRACKET ASSY
 013 001 15333161 BRACKET ASSY
 014 012 09267949 WASHER-HARDENED
 015 006 00186689 BOLT
 016 006 09419465 NUT
 017 008 00223436 BOLT
 018 008 09191596 WASHER
 019 001 15334621 BOX ASSY-REMOTE PRESS CHECK
 020 001 15318110 .HINGED COVER
 021 001 09268689 .CHAIN
 022 001 15255881 .PIN-LOCKING
 023 002 15255882 .PIN-HINGE
 024 002 00103362 .PIN-COTTER
 025 006 15300946 .ADAPTOR-BULKHEAD
 026 002 00179880 BOLT
 027 002 00103329 LOCKWASHER
 028 001 15250940 FILTER ASSY
 029 001 15265318 .ELEMENT
 030 001 15334540 SCREEN ASSY-SUCTION (REF ECN 108283)
 031 003 09188290 ROD
 032 006 02389616 NUT-WING
A 033 004 09188288 GASKET NSS
 034 003 09003522 ROD BOLT
A 035 002 09038953 KIT-ELEMENT
 036 003 09068999 SCREEN ASSY
 037 ASR 09113457 LOCKWIRE
 038 001 15251862 VALVE-BY PASS
 039 001 15338630 VALVE ASSY
 040 001 15503647 .POPPET
