Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :186689

Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38

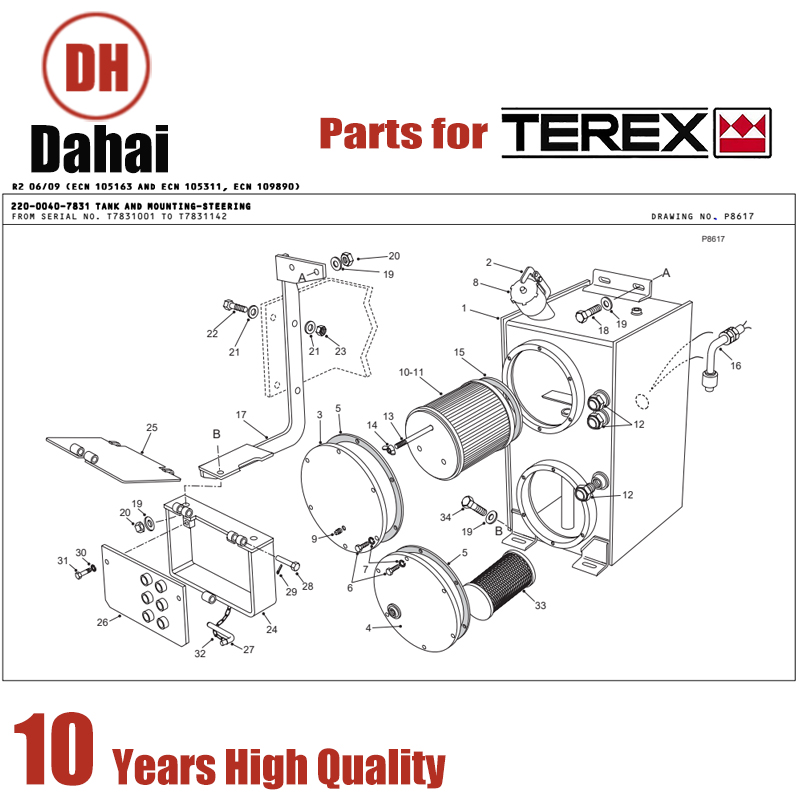

 001 001 15255373 STEERING TANK WELDME
 002 001 09071724 .LATCH
 003 001 15255315 .COVER
A 004 001 15301265 .COVER ASSY
 005 001 09202069 .GASKET
 006 012 00179839 .BOLT
 007 012 00108580 .LOCKWASHER
 008 001 15353024 .CAP ASSY
 009 001 00444619 .PLUG
 010 001 15250940 FILTER ASSY
 011 001 15265318 .ELEMENT
 012 003 15230178 NUT-WINDOW
 013 003 09188290 ROD
 014 003 02389616 NUT-WING
 015 001 09188288 GASKET
 016 001 15236152 SWITCH-LEVEL FLOAT
 017 001 15255391 BRACKET ASSY
 018 003 00186646 BOLT
 019 008 09267949 WASHER-HARDENED
 020 004 09419466 NUT
 021 004 09191596 WASHER
 022 002 00223437 BOLT
 023 002 09411566 NUT
 024 001 15255470 BRACKET ASSY
 025 001 15255841 COVER-HINGED
 026 001 15255471 PLATE ASSY
 027 001 15255881 PIN-LOCKING
 028 002 15255882 PIN-HINGE
 029 002 00103362 PIN-COTTER
 030 002 00108580 LOCKWASHER
 031 002 00179837 BOLT
 032 001 09268689 CHAIN
 033 001 15025076 SCREEN ASSY-SUCTION

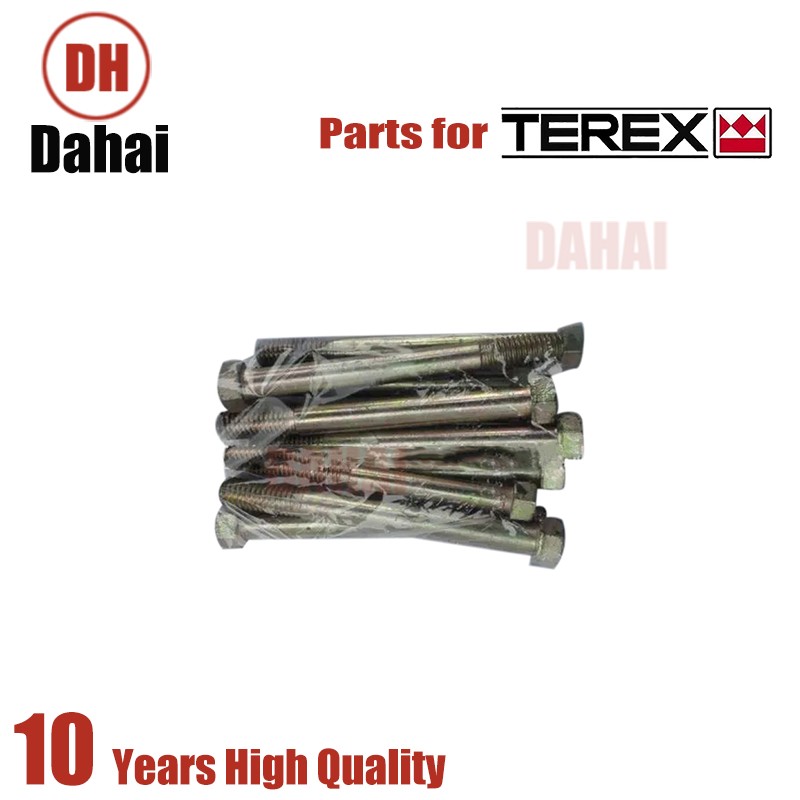

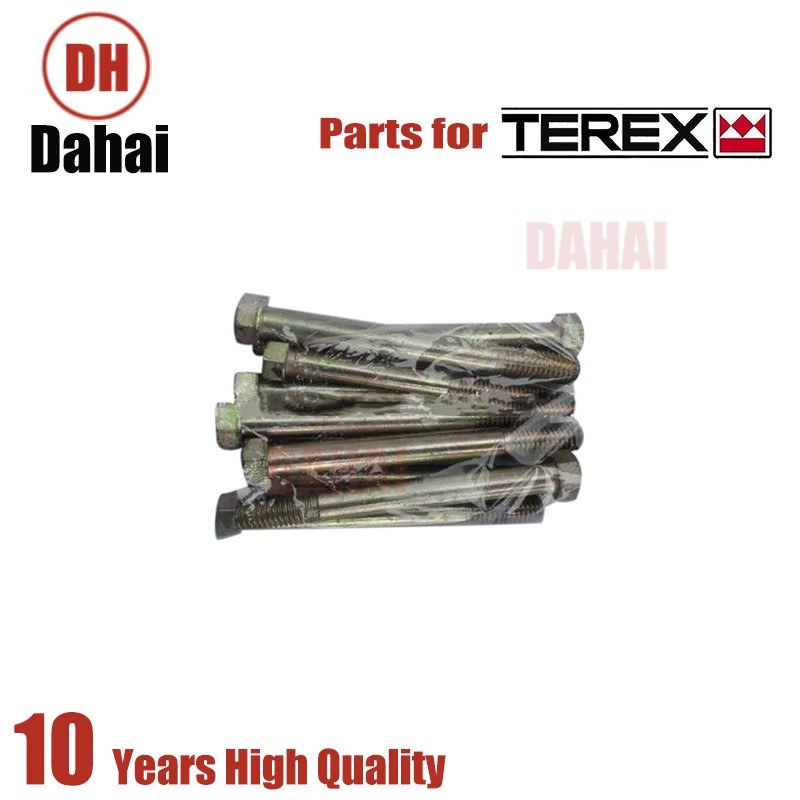

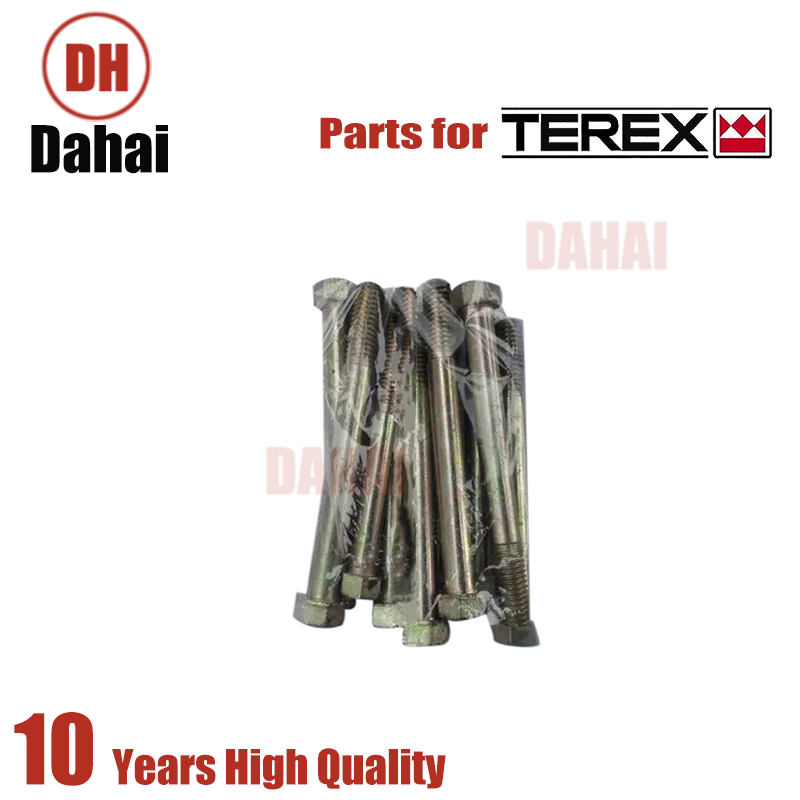

 034 001 00186689 BOLT
NOTES:
A UNITS NOT FITTED WITH INTER TANK CONNECTION USE COVER
09228841

 001 001 15255373 STEERING TANK WELDME
 002 001 09071724 .LATCH
 003 001 15255315 .COVER
A 004 001 15301265 .COVER ASSY
 005 001 09202069 .GASKET
 006 012 00179839 .BOLT
 007 012 00108580 .LOCKWASHER
 008 001 15353024 .CAP ASSY
 009 001 00444619 .PLUG
 010 001 15250940 FILTER ASSY
 011 001 15265318 .ELEMENT
 012 003 15230178 NUT-WINDOW
 013 003 09188290 ROD
 014 003 02389616 NUT-WING
 015 001 09188288 GASKET
 016 001 15236152 SWITCH-LEVEL FLOAT
 017 001 15255391 BRACKET ASSY
 018 003 00186646 BOLT
 019 008 09267949 WASHER-HARDENED
 020 004 09419466 NUT
 021 004 09191596 WASHER
 022 002 00223437 BOLT
 023 002 09411566 NUT
 024 001 15255470 BRACKET ASSY
 025 001 15255841 COVER-HINGED
 026 001 15255471 PLATE ASSY
 027 001 15255881 PIN-LOCKING
 028 002 15255882 PIN-HINGE
 029 002 00103362 PIN-COTTER
 030 002 00108580 LOCKWASHER
 031 002 00179837 BOLT
 032 001 09268689 CHAIN
 033 001 15025076 SCREEN ASSY-SUCTION
 034 001 00186689 BOLT
NOTES:
A UNITS NOT FITTED WITH INTER TANK CONNECTION USE COVER
09228841
